VAN XẢ NƯỚC TỰ ĐỘNG JORC (FLUIDRAIN)

FLUIDRAIN

JORC - HÀ LAN

6 tháng

VAN XẢ NƯỚC TỰ ĐỘNG CÓ CÀI ĐẶT THỜI GIAN Model: FLUIDRAIN Mã số: 1603 Thời gian nghỉ (OFF time): 0,5 – 45 phút Thời gian xả (ON time): 0,5 - 10 giây Áp làm việc max: 16 bar Điện áp: 230V Kết nối ren: 1/2'' (21mm) Lắp cho: Máy sấy khí, Bình chứa khí nén, Bộ lọc trên đường ống, ......

VAN XẢ NƯỚC TỰ ĐỘNG CÓ CÀI ĐẶT THỜI GIAN

Model: FLUIDRAIN
Mã số: 1603
Thời gian nghỉ (OFF time): 0,5 – 45 phút
Thời gian xả (ON time): 0,5 - 10 giây
Áp làm việc max: 16 bar
Điện áp: 230V
Kết nối ren: 1/2'' (21mm)
Lắp cho: Máy sấy khí, Bình chứa khí nén, Bộ lọc trên đường ống, ......

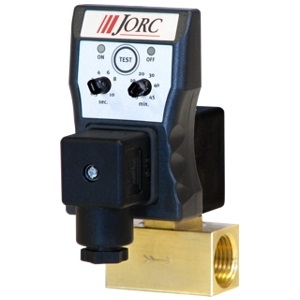

The FLUIDRAIN Timer Controlled Condensate Drain is a combination of a solenoid valve and an electronic timer designed to automatically remove condensate from compressed air systems.

The FLUIDRAIN is designed to remove condensate from compressors, compressed air dryers and receivers up to any size, type or manufacturer.

The FLUIDRAIN offers true installation simplicity and it is recognised as the most reliable and best performing condensate drain worldwide. The large orifice in the direct acting valve, combined with its sophisticated timer module ensure many years of trouble-free draining of condensate providing minimum service work is carried out.

SPECIFICATIONS

MAXIMUM COMPRESSOR CAPACITY Any size
PRESSURE RANGE 0 - 16 bar (higher pressure available, see FLUIDRAIN-HP-S)
SUPPLY VOLTAGE OPTIONS 12 - 380 VAC/DC 50/60Hz. (please indicate)
MEDIUM TEMPERATURE 1 - 55 °C
AMBIENT TEMPERATURE 1 - 55 °C
TIMER CYCLE RANGE (ON / OFF) 0.5 - 10 seconds / 0.5 - 45 minutes
TIMER PCB SMD technology, ensuring consistency in production
TIMER CYCLE INDICATION Bright LED illumination
TEST FEATURE Yes
VALVE TYPE 2/2 way, direct acting
VALVE ORIFICE 4.5 mm
VALVE SEALS FPM
INLET/OUTLET CONNECTIONS 1/8″, 1/4″, 3/8″, 1/2″ (BSP or NPT)
INLET CONNECTION HEIGHT 1 cm
SERVICEABLE VALVE Yes
VALVE HOUSING MATERIAL Brass (Stainless steel available)
POWER CONNECTION DIN 43650-A
ENVIRONMENTAL PROTECTION IP65 (NEMA4)


FEATURES

High quality PCB components, offering you consistent quality.

FLUIDRAIN  1

Serviceable valve, offering you annual maintenance revenues.

FLUIDRAIN  2

Private labelling possible, offering you product personalisation.

FLUIDRAIN  3



Does not air-lock during operation.
Suitable for any type of compressed air systems and up to any size.
Also available in Stainless steel and High pressure.
TEST (micro-switch) feature.
Accurate time cycles.
Large (4.5 mm) valve orifice.
Voltage range 12 – 380VAC/DC.
Environmental low Watt version available.



PHOTOS

FLUIDRAIN High Resolution photo
  • FLUIDRAIN High Resolution photo
  • Size: 10.14 MB
  • Type: TIF
  • DOWNLOAD
FLUIDRAIN Dimensions
  • FLUIDRAIN Dimensions
  • Size: 0.23 MB
  • Type: PDF
  • DOWNLOAD
