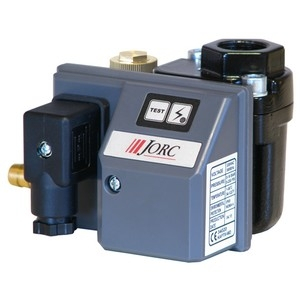

VAN XẢ NƯỚC TỰ ĐỘNG JORC (KAPTIV-MD)

KAPTIV-MD

JORC - HÀ LAN

06 tháng

Mã số: KAPTIV-MD

VAN XẢ NƯỚC TỰ ĐỘNG JORC (KAPTIV-MD)



The KAPTIV-MD is a zero air-loss drain designed for smaller compressed air applications.

The KAPTIV-MD incorporates the reliable JORC direct acting valve assembly with FPM seals, offering a pressure range of 0 to 16 bar (up to 230 PSI).

The solid and robust aluminium housing design has also been incorporated in to this model, following suite with the larger KAPTIV models.

With an inlet connection height of only 74mm this is an incredibly compact solution with unrivaled installation versatility and reliability.

The weight of the KAPTIV-MD is only 0.5kg!

The maximum compressor capacity of this drain is 10 m3/min (350 CFM) and typical draining applications include fridge dryers and filters - mainly due to its incredible compact size.



SPECIFICATIONS

MAXIMUM COMPRESSOR CAPACITY 10 m³/min.
PRESSURE RANGE 0 - 16 bar
VALVE TYPE 2/2 way, direct acting
VALVE ORIFICE 2 mm
VALVE SEALS FPM
INLET CONNECTION 1/2″ (BSP or NPT)
INLET HEIGHT 7.4 cm
OUTLET CONNECTION 1/4″ BSP
MEDIUM TEMPERATURE 1 - 50 °C
AMBIENT TEMPERATURE 1 - 50 °C
SUPPLY VOLTAGE OPTIONS 230VAC / 115VAC / 24VAC / 24VDC
POWER CONNECTOR DIN 43650-B
SERVICEABLE VALVE Yes
TEST FEATURE Yes
ENVIRONMENTAL PROTECTION IP65 (NEMA4)
INTEGRATED MESH STRAINER Yes
HOUSING MATERIAL Corrosion resistant aluminium, EP coating
